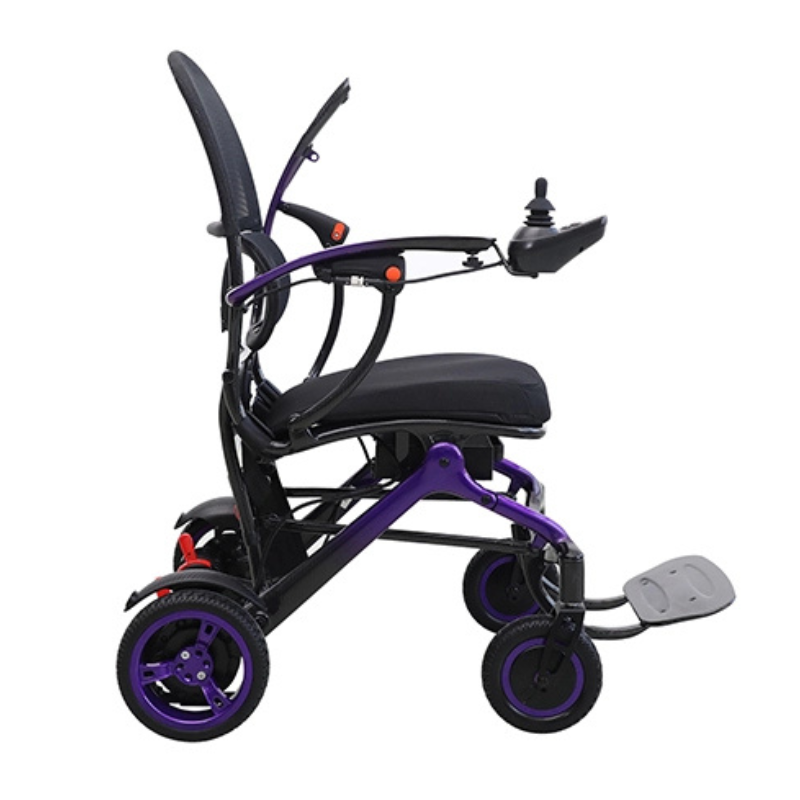

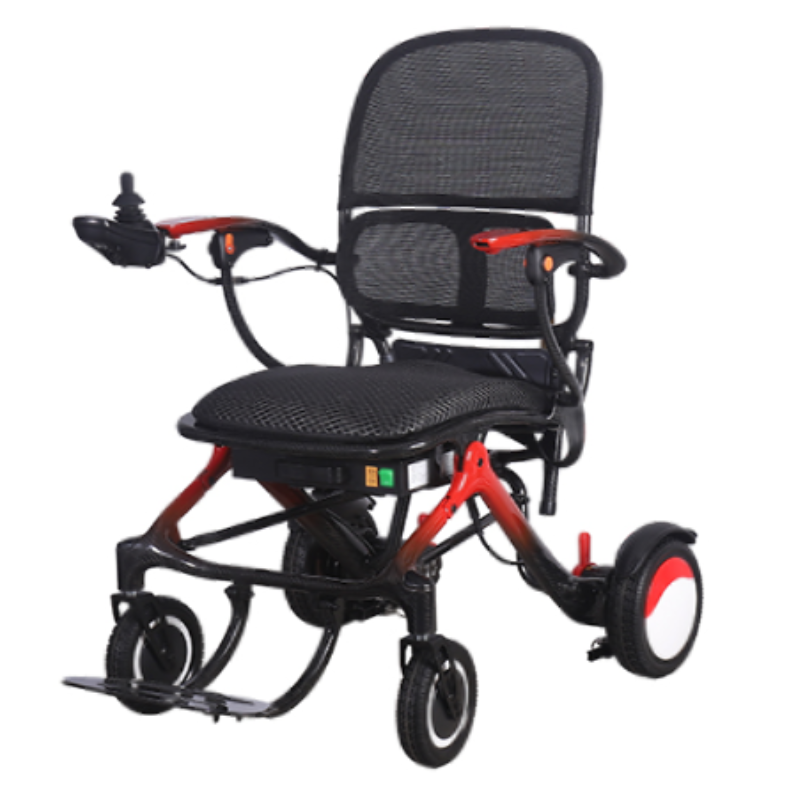

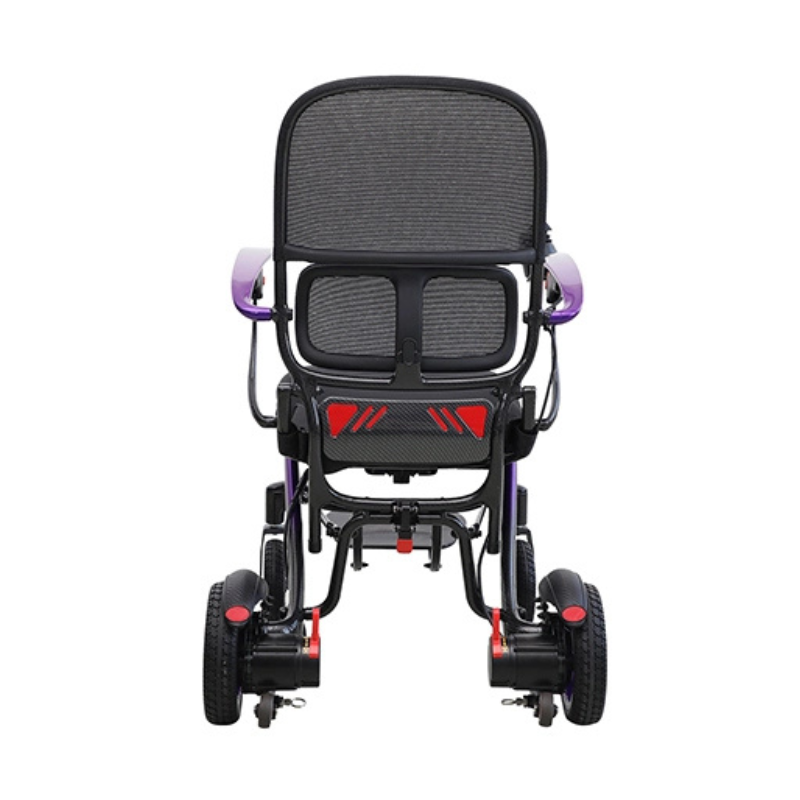

LUMA Carbon

Frame：Carbon Fiber frame

Motors：24V/180W ×2 (Brushless)

Battery：24V 12AH (Lithium Battery)

Charger：AC100-240V, 24V 2A/3A

Weight Capacity：136kgs / 300lbs

Charge Time：4–6 hours

Max. Forward Speed：Up to 6 km/h

Max. Backward Speed：Up to 2 km/h

Climbing Capability：9° (at 100kg load)

Obstacle Clearance Height：25mm (at 100kg load)

Ditch Crossing Width：100mm (at 100kg load)

Driving Range：15 km (12Ah battery)

Ground Clearance：35mm (Anti-tip wheel), 100mm (Motor)

Tyres – Front：7 “ (175mm × 38mm) PU solid

Tyres – Rear：9 “ (215mm × 50mm) PU solid

G.W. with Carton：19kgs / 41.8lbs

N.W. (without battery)：13.5kgs/29.7lbs

Seat Material：Oxford Cloth / Cotton, Inside: Sponge

Seat Width：380 mm

Seat Depth：420 mm

Seat Thickness：40 mm

Backrest Height：530 mm

Seat to Ground Height：500 mm

Seat to Foot Platform Height：420 mm

Overall Length：940 mm (with Anti-tip wheel)

Overall Width：600 mm

Overall Height：980 mm

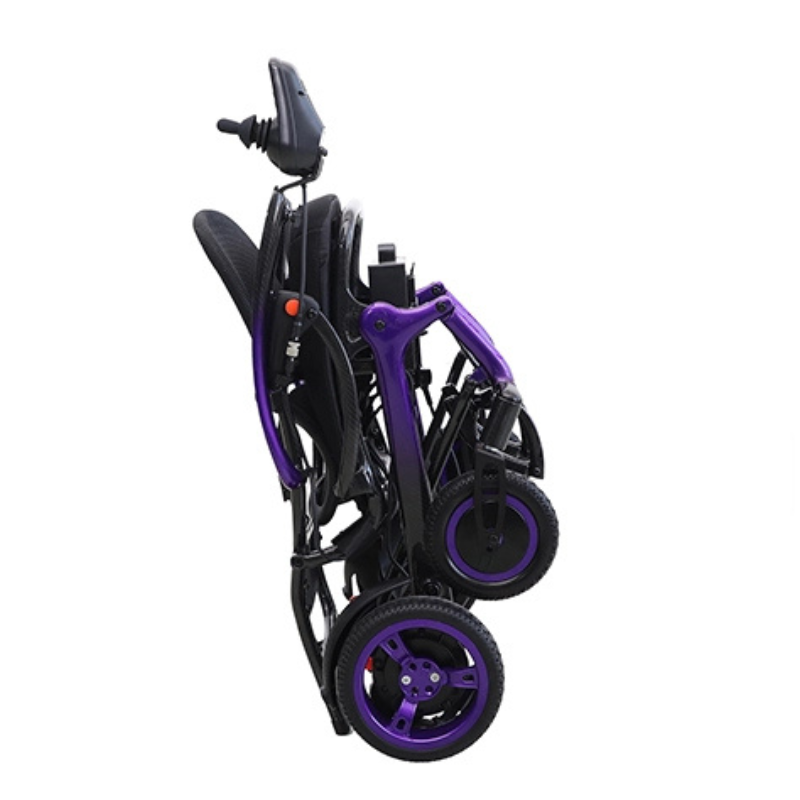

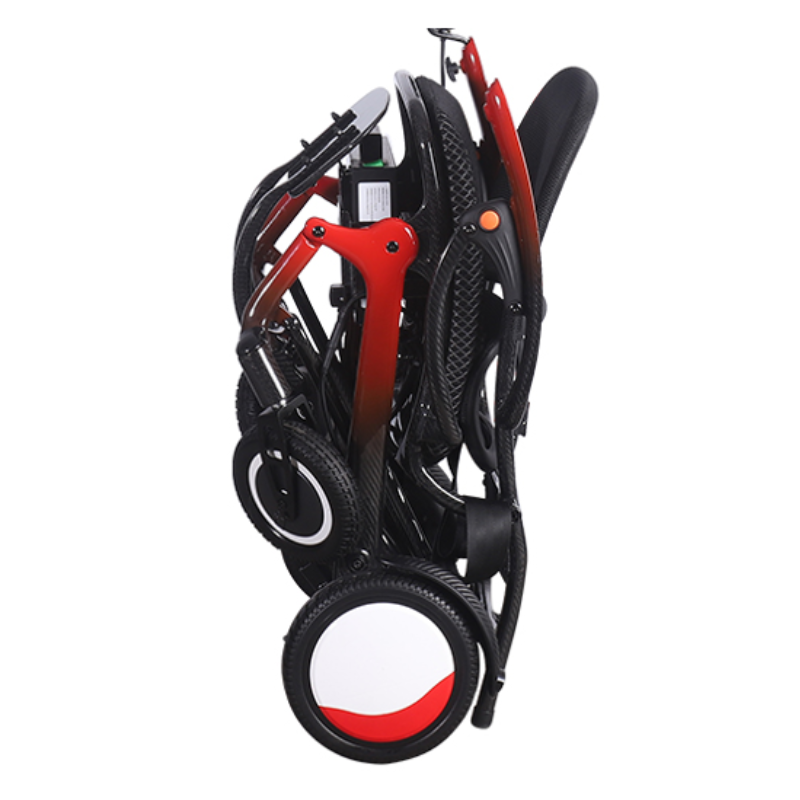

Folded Size (L×W×H)：600 × 350 × 750 mm

Brake：Electromagnetic brake

Warranty – Frame：5 years limited

Warranty – Controller/Battery/Motor：12 months

Packing Size：660 × 420 × 830 mm

Container Load (20′ FCL)：125 pcs

Container Load (40′ HQ)：279 pcs
