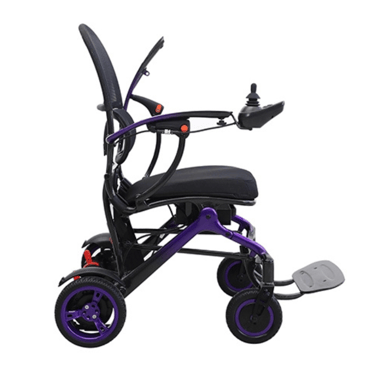

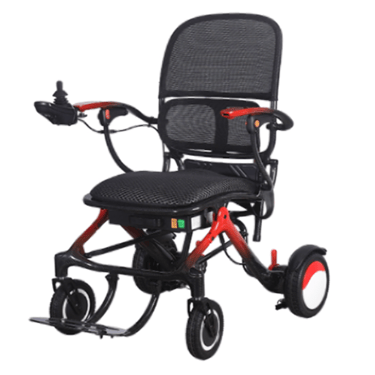

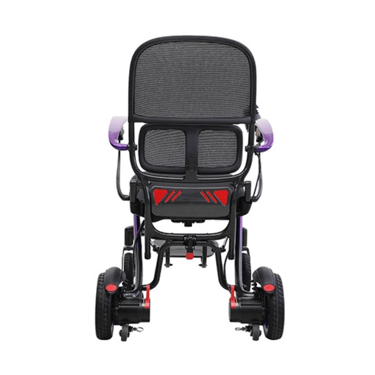

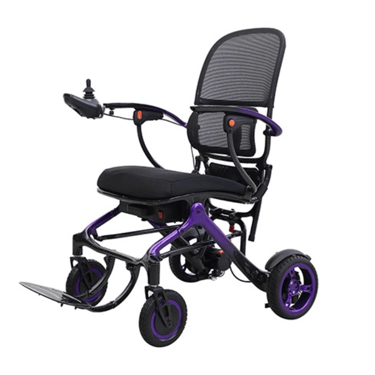

LUMA Carbon Carbon Fiber Electric Wheelchair

Ultra-Light. Travel-Ready. Power You Can Rely On.

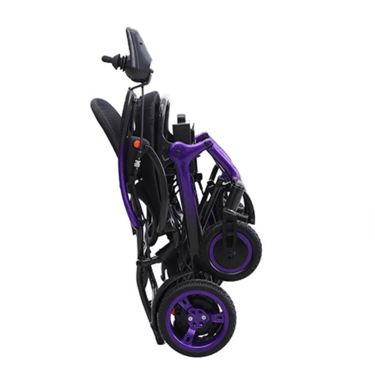

• Only 13.5 kg, folds in seconds, and fits easily into car trunks or airplane cabins.

• Powered by dual brushless motors and a 12Ah lithium battery for up to 15 km range.

• Strong, compact, and built for real mobility — ideal for travel, daily use, and aging-in-place.

• Soft sponge-padded seat (40 mm thick), wrapped in breathable Oxford and cotton fabric.

• Optimized seat height (500 mm) and footplate clearance for easy transfers and long-term comfort

🛡️Built for Long-Term Use

• 5-year warranty on the carbon frame.

• 12-month warranty on battery, controller, and motors.

Colors:

Product Specifications

• Frame：Carbon Fiber frame

• Motors：24V/180W ×2 (Brushless)

• Battery：24V 12AH (Lithium Battery)

• Charger：AC100-240V, 24V 2A/3A

• Weight Capacity：136kgs / 300lbs

• Charge Time：4–6 hours

• Max. Forward Speed：Up to 6 km/h

• Max. Backward Speed：Up to 2 km/h

• Climbing Capability：9° (at 100kg load)

• Obstacle Clearance Height：25mm (at 100kg load)

• Ditch Crossing Width：100mm (at 100kg load)

• Driving Range：15 km (12Ah battery)

• Ground Clearance：35mm (Anti-tip wheel), 100mm (Motor)

• Tyres – Front：7 “ (175mm × 38mm) PU solid

• Tyres – Rear：9 “ (215mm × 50mm) PU solid

• G.W. with Carton：19kgs / 41.8lbs

• N.W. (without battery)：13.5kgs/29.7lbs

• Seat Material：Oxford Cloth / Cotton, Inside: Sponge

• Seat Width：380 mm

• Seat Depth：420 mm

• Seat Thickness：40 mm

• Backrest Height：530 mm

• Seat to Ground Height：500 mm

• Seat to Foot Platform Height：420 mm

• Overall Length：940 mm (with Anti-tip wheel)

• Overall Width：600 mm

• Overall Height：980 mm

• Folded Size (L×W×H)：600 × 350 × 750 mm

• Brake：Electromagnetic brake

• Warranty – Frame：5 years limited

• Warranty – Controller/Battery/Motor：12 months

• Packing Size：660 × 420 × 830 mm

• Container Load (20' FCL)：125 pcs

• Container Load (40' HQ)：279 pcs
